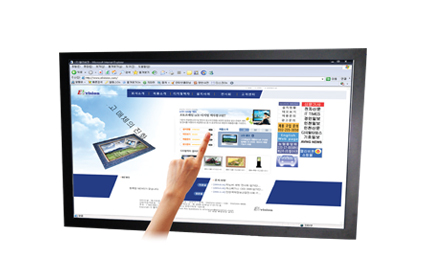

Infrared touch screen is the latest technology that support the most

reliable touch technology. Infrared touch screen (NIC Series) Composed of

a touch frame installed in front of the display.

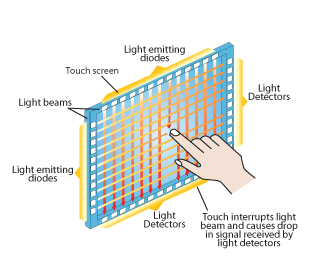

The frame is intergrated with a printed circuit board which contains a line of

IR-LEDs and photo transistors located behind the bezel of the touch frame.

The bezel holds the parts from the operation environment while

allowing the IR beams to pass through.

When touch is applied, the screen enters the grid by a stylus which can

interrupt the IR light beams.

The Photo transistor from X & Y axes detects the IR light beams which have

been interrupted and transmit exact signals that identify the X & Y axes

coordinates to the host.

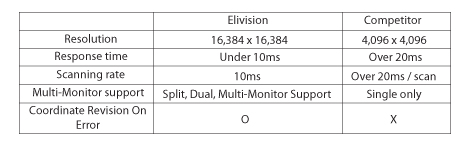

     ¢º Features


        ¢Â Infrared Touch Screen Benefits

        1. High Stability

        Changes in the time or environment will not cause any drift.

        2. High light transmittance

        The touch screen has no intermiate touch overlay, enabling light                transmittance to reach as mush as 100%

        3. Long service life

        Extremely durable, scratch resistant.

        4. Easy activation

        Touch pressure is not required; no special material is required for          touch activation. An activating stylus can be used whether soft or          hard-conductor or nonconductor.

        5. Easy fitting


        Enables to fit over the front bezel of the normal display by overlay         solutions.


        ¢Â Applications

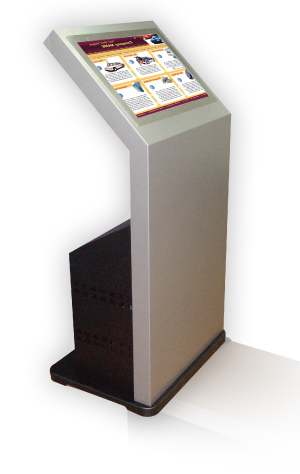

        Infrared touch screen can be applicable in various industrial areas such as Kiosks, Medical equipment, ATM, Retails, Commercial transportation, Advertising display,
        Signage display and so forth

        ¢Â Benefits

        - Reliable Muliti-point touch environment by using infrarde touch solution
       - Original technology of muliti-point touch solutions and supports suitable for various on the screen
       - plenty of opportunities for the softw are developers to express their imagination on the screen
       - API to developers to create the contents
       - Recognition of touching size on the screen

        ¢Â Muliti-point touch solution

        - Expressing the user's imagination on screen.
       - New idea & technology support for the IT & SW Industry
       - Original technology support for the various application.

        ¢Â IR-Infrared
